Electrical Specifications |
||||||||||||
|
Item No. |
BG698-4000V-8-70C |
|||||||||||
|
Frequency Range |
MHz |
698-806 |
806-960 |
1710-2700 |
3300-4000 |
|||||||
|
Gain |
dBi |
5.5±1 |
6±1 |
7±1 |
7.5±1 |
|||||||
|
Polarization |
Vertical |
|||||||||||
|
Horizontal |
deg |
85±20 |
85±20 |
62±15 |
60±20 |
|||||||
|
Vertical (Typical ) |
75 |
73 |
60 |
50 |
||||||||
|
Front-To-Back Ratio |
dB |
> 8 |
> 8 |
> 12 |
> 12 |
|||||||
|
VSWR |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.8 |
||||||||
|
PIM, 3rd Order, 2 x 20W, |
dBc |
-153 |
||||||||||
|
Input Power, maximum |
watt |
50 |
||||||||||
|
Impedance |
ohm |
50 |
||||||||||
|
Mechanical Specifications |
||||||||||||
|
Connector Type |
N-female |
|||||||||||
|
Size |
mm |
165x155x45 |
||||||||||
|
Weight, without Mounting Kit |
kg |
0.37 |
||||||||||
|
Mounting Kit |
On-wall |
|||||||||||
|
Mounting hardware |
(mm) |
φ35～φ60 |
||||||||||
|
Radome Material and Color |
ABS, White, RAL9003 |
|||||||||||
|
Operational Temperature |
oC |
-55～60 |
||||||||||
|
Operational Humidity |
% |
< 95 |
||||||||||

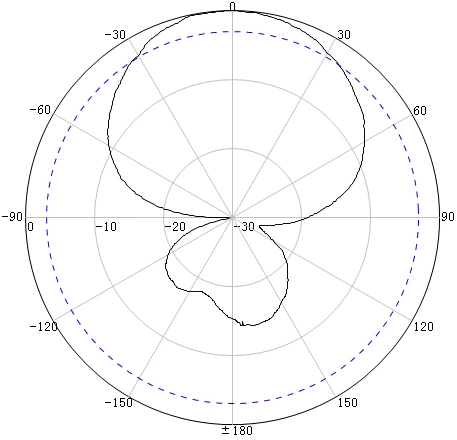

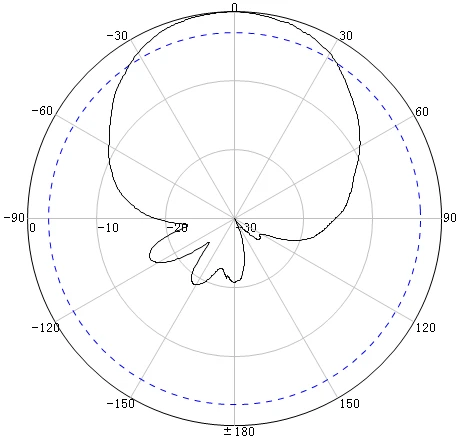

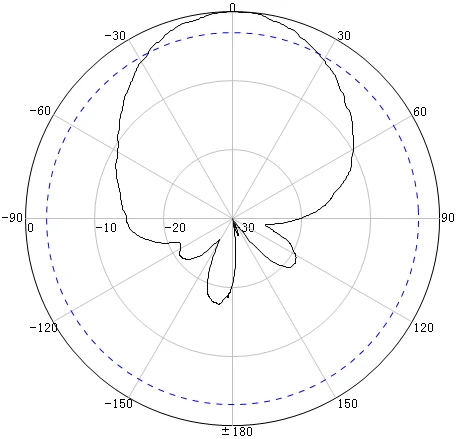

Radiation Patterns
| Horizontal pattern |
|
|
|
| Vertical pattern |
|
|
|
| 900MHz | 1710MHz | 2500MHz |
FAQ
Q: What is the lead time for samples?
A: Sample production typically takes 7–15 days, including thorough testing to ensure excellence. For urgent requests, please let us know, and we will prioritize your order with overtime support.
Q: Can you provide customized products and logo services?
A: Yes, we offer comprehensive OEM & ODM services. Simply share your design drawings or specifications, and our team will transform your ideas into high-quality products.
Q: Are fully assembled antennas always in stock?
A: No, all antennas-including samples-are newly assembled according to individual orders to ensure freshness and precision.
