Key Features
Dual-Purpose Configurations
• Charging Ports: 5PIN 2P3S (6A power + 2A signal)
• Discharge Ports: 2P4S (30A power + 2A signal, expandable to 4P8S)
High-Durability Design
• 5000+ mating cycles (charging connectors)
• PBT+GF housings with UL94V-0 rating
Smart Power Management
• Separate power/signal lines (20-12AWG vs 26-24AWG)
• IPX6 waterproof for outdoor use
Multi-Platform Compatibility
For E-Bikes, E-Scooters, Drones, AGVs, and Energy Storage
Technical Specifications
Charging Connectors
| Part Number | Gender | Current Rating | Wire Gauge |
| CATS100-043 | Female | 6A (Power), 2A (Signal) | 20AWG, 26-24AWG |
| CW-088-A480 | Male | 6A (Power), 2A (Signal) | 20AWG, 26-24AWG |
Discharge Connectors
| Part Number | Configuration | Current Rating | Wire Gauge |
| CW-088-A525 | 2P4S Female | 30A (Power), 2A (Signal) | 14-12AWG, 26-24AWG |
| CW-088-A479 | 2P4S Female | 30A (Power), 2A (Signal) | 14-12AWG, 26-24AWG |

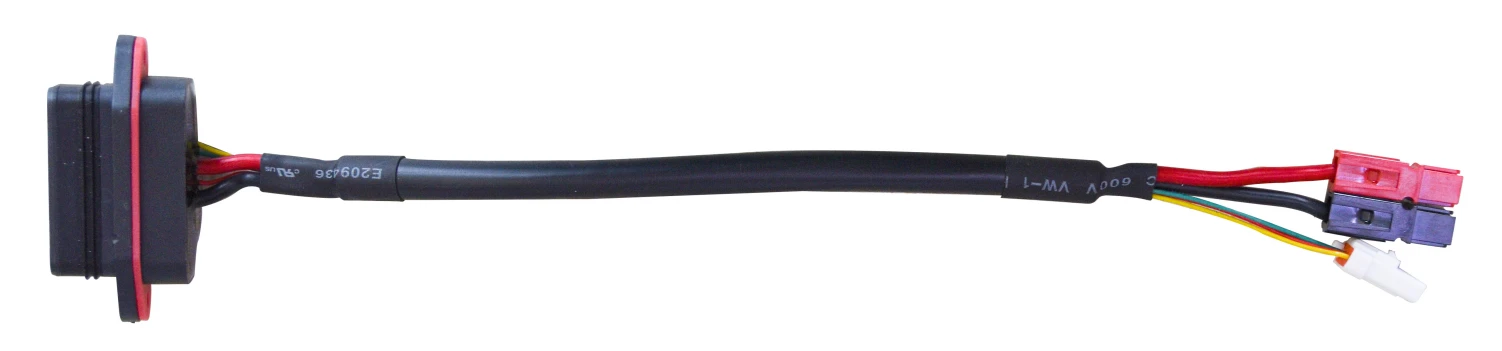

Battery Pack 5PIN Charging Socket Harness
Battery Pack 5PIN Charging Plug Harness
Battery Pack Discharge Port Socket Harness
Battery Pack Discharge Port Female Socket Harness
